Kinderkrippe Himmelschlüsselstraße

The 3-group day nursery is located next to the recreation area of the Lerchenauer See in the context of typical suburbs development of single-family, row and semi-detached houses in the 24th District Feldmoching - Hasenbergl.

Project description

Having an archaic form with a gable roof as a "typical house" and in particular as a "house for children" the building become integrated into the context, without denying its usage.

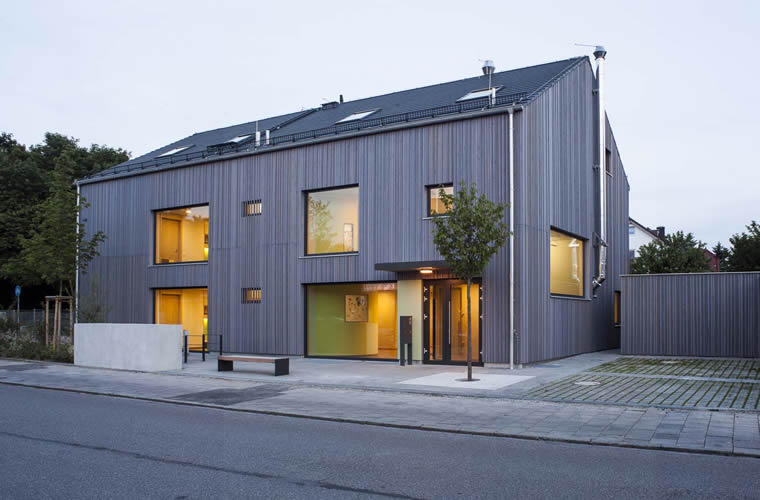

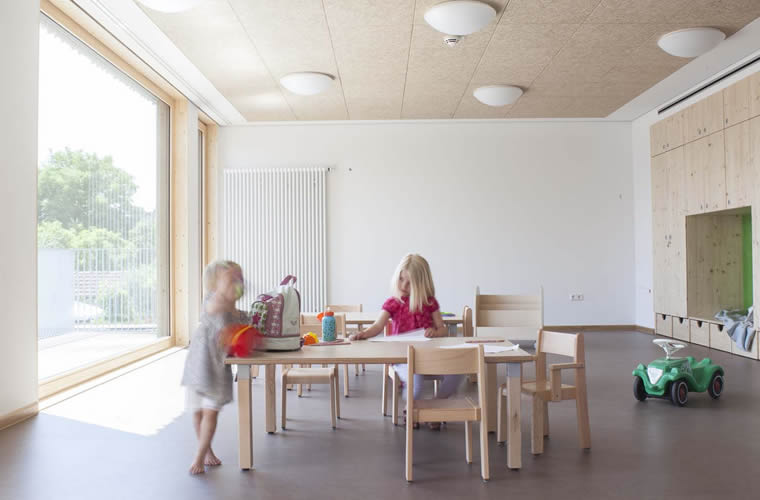

The design is a mixture (hybrid) of concrete and timber. The entire basement and the ceiling and load bearing walls in the ground and first floor were made of concrete. The whole building from exterior walls and roof was built as a timber construction with prefabricated elements. The structural distinction is readable and understandable on and in the building by differentiated material languages and surfaces. The interior and exterior appearance of the building is marked by the materiality of the wood. The facade consists of an open profiled, glazed gray larch cladding. Inside, the wood is experienced by the shelf units of three-layer panels in silver fir. The "shelf area" is not only for storage, but is also a place as cosy corner and as a zone for installation of the controlled ventilation for the group and rest rooms.

The rooms for the daycare are south-facing with large windows. By the curved design of the sanitary areas as a "block in the space” it gets created a individual space in front of each cluster group.

In terms of sustainability and energy efficiency, a low-energy building is achieved, which remains 39% below the standard for new buildings.

Project data

Landeshauptstadt München, Referat Bildung und Sport, Baureferat (Projektleitung)

plan-stelle, stieglmeier architekten
Assistance: Manfred Stieglmeier, Christian Neubauer, Olga Laubender, Victor von Beck, Helena Nothofer, Melanie Jobst

Himmelschlüsselstraße 1, 80995 München

Floor space (DIN 277): 506 m2
Bruttogrundfläche 909 m2
Floor space: 01/2014

Matthias Kestel

Claudia Seidenschwand, Deisenhofen

Behringer Beratende Ingenieure, München
